MFB EC SERIES

RADIAL BOX TYPE COMPACT FANS EC MOTORS

  • Corrosion-resistant painted chassis and double-skin galvanized panels for high durability
  • High efficiency with backward-curved, plug fan design
  • Low noise levels thanks to 25 mm thick insulated panels
  • Easy airflow direction changes with modular panel construction
  • Filter configuration is optional
  • High efficieny with EC MOTOR, operating capability within 010 V control range

MODELPRODUCT CODEFlowPWRSoundCurrentRotationVOLTAGE
(m³/h)(watt)(dBA)(AMP)(RPM)(V)
MFB 190-0,7-EC95001980250741,204490230
MFB 225-0,3-EC950022050450703,003600230
MFB 250-0,3-EC950032600550693,503000230
MFB 250-0,7-EC9500433001000744,403800230
MFB 315-0,7-EC950054200800715,802400230
MFB 315-1,5-EC9500658001850783,003250380
MFB 355-1,6-EC9500765001700812,702650380
MFB 450-1,6-EC9500890001800882,801800380

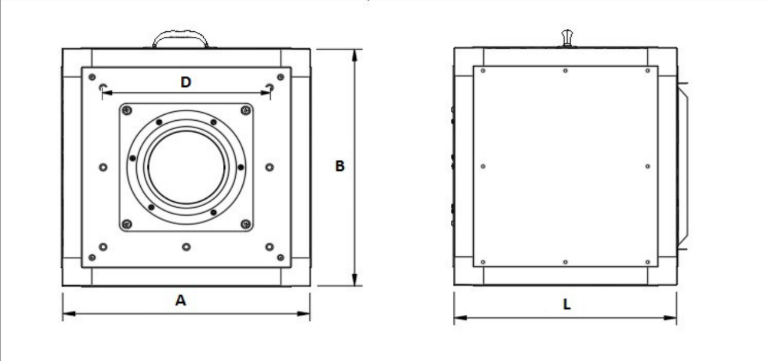

MODELSDIMENSIONS (mm)
#DABL
MFB 190-0,7-EC275400400300
MFB 225-0,3-EC325450450350
MFB 250-0,3-EC375500500350
MFB 250-0,7-EC375500500350
MFB 315-0,7-EC425550550400
MFB 315-1,5-EC475600600400
MFB 355-1,6-EC475600600450
MFB 450-1,6-EC525650650550
