VKPF – EC SERIES

RECTANGULAR RADIAL DUCT FAN WITH ЕС МОТОR

  • Inline radial type fan
  • Galvanized steel sheet casing.
  • Linear airflow direction
  • Fitted with a folding inspection hatch for ease of maintenance.
  • High efficiency EC Technology motors; outer rotor adjustable via 0-10 V signal.
  • Single-phase 200-240 V 50/60 Hz and three-phase 380-480 V 50/60 Hz.
  • Maximum temperature of air to be carried: -25 +60C

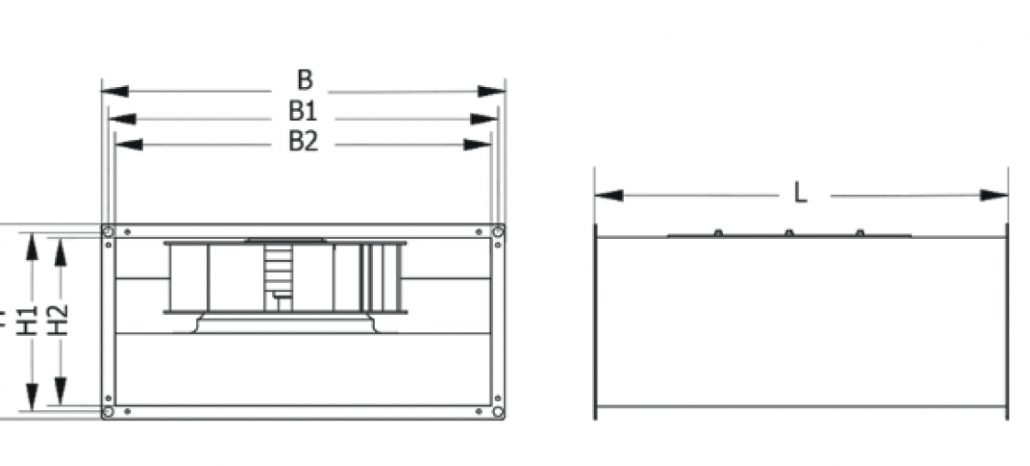

MODELSDIMENSIONS (mm)
BB1B2HH1H2L
VKPF190 450 425 400300275250 525
VKPF 190-EC-H 450 425 400300275250 525
VKPF 220-ЕС 450 425 400300275250 575
VKPF 225-EC 450 425 400300275250 575
VKPF 225-EC-S 450 425 400350325300575
VKPF 250-EC500475450350325300625
VKPF250-EC-S 500475450350325300625
VKPF 250-EC-H500475450350325300625
VKPF280-EC 500475450350325300625
VKPF 280-EC-S 500475450400375350625
VKPF 280-EC-S2500475450400375350625
VKPF 310-EC 550525500450425400700
VKPF 310-EC-S 550525500450425400700
VKPF 335-EC650625600500475450800
VKPF400-EC 750725700550525500850
VKPF450-EC-S 850825800650625600900
MODELPRODUCT CODEAirflowPWRSoundCurrentRotationVOLTAGEWeight
(m³/h)(KW)(dBA)(AMP)(RPM)(V)(KG)
VKPE 190-EC 94001780 87 72 0,70 3300 23015
VKPF 190-EC-H 940021000 17072 1,30410023016
VKPE 220-EC 940031300165 72 1,103200 23017
VKPE 225-EC940041400 165 72 1,10380023017
VKPF 225-EC-S 940051380210681,60 300023022
VKPF 250-EC 94006150016272 1,20 280023019
VKPF 250-EC-S 94007280053674 2,303100 23024
VKPF 250-EC-H 940082400520852,50365023024
VKPF 280-EC 940093800750853,35 325023020
VKPF 280-EC-S 940103620 1650572,803160 38031
VKPF 280-EC-S2 9401141501140821.86 3270 38031
VKPF 310-EC 940124000 730753.20270023027
VKPF 310-EC-S 940134800165082 2,80 3160 38034
VKPF 355-EC940144500750753,35 2250 23029
VKPF 400-EC 940156500 75082 3,35 1900 23036
VKPF 450-EC-S 94016110002950834.50 2150 38063
