RSD SERIES

BOX TYPE RADIAL SMOKE EXHAUST FAN

  • Backward curved radial impeller structure.
  • Cell panels are made of single walled galvanized steel.
  • Resistant to electrostatic powder coated corrosion.
  • The motor is speed controllable by frequency converter.
  • Effiency class is IE3.
  • Suitable for operating temperratures of up to 400°C /2h.
  • Optional double speed F400/2h, F300/2h and double speed.

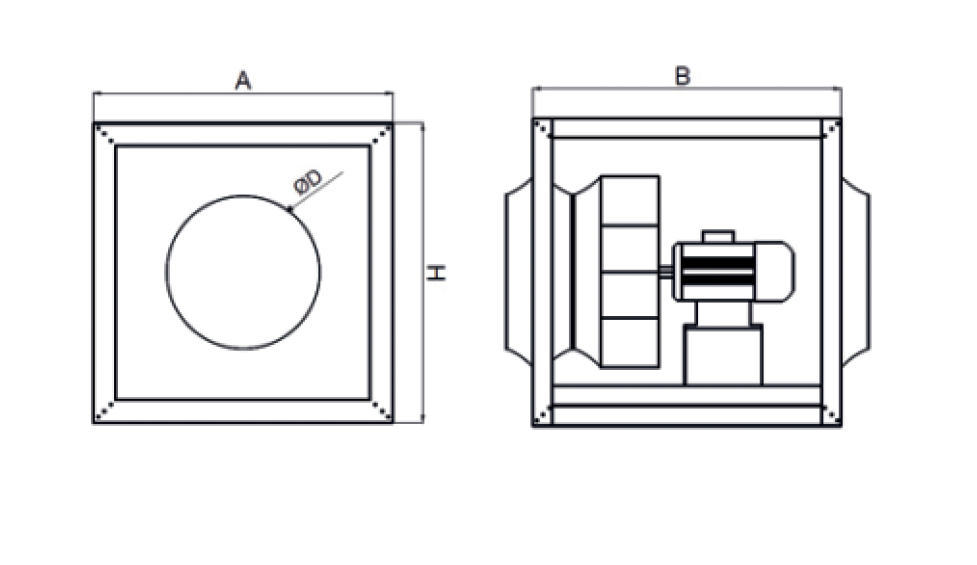

MODELSDIMENSIONS (mm)
ØDABH
RSD 400-4T-0,55-F400 240 700 700 700
RSD 450-4T-0,75-F400 260 750 750750
RSD 500-4T-1,5-F400 310 800 800 800
RSD 560-4T-3-F400340925925925
RSD 630-4T-5,5-F400 410 10001000 1000
RSD 710-4T-7,5-F4004601050 1050 1050
RSD 710-4T-11-F400 4601050 1050 1050
RSD 315-2T-1,1-F400 190 650 650 650
RSD 355-2T-2.2-F400190 650650 650
RSD 400-2T-4-F400 240 700700700
RSD 450-2T-7,5-F400 260750750750
MODELPRODUCT CODEAirflowPWRSoundCurrentRotationVOLTAGEWeight
(m³/h)(KW)(dBA)(AMP)(RPM)(V)(KG)
RSD 400-4T-0,55-F4006500146000,55 881.5 138538095
RSD 450-4T-0,75-F4006500266000,75892.1 1410380100
RSD 500-4T-1,5-F400 6500387001,5 923.51430380110
RSD 560-4T-3-F400 65004132803 906.6 1435380140
RSD 630-4T-5,5-F400 65005176005,57411.2 1465380180
RSD 710-4T-7,5-F400 65006275007,57315.4 1465380210
RSD 710-4T-11-F400650072500011 7621 14703802500
RSD 315-2T-1,1-F400 6500845001,1 742.3 290038070
RSD 355-2T-2,2-F4006500965002.2 784.5 290038085
RSD 400-2T-4-F400 6501094004877.4 2920380120
RSD 450-2T-7.5-F400 65011133007,59012.9 2930380135
