RKD-S SERIES

RADIAL SNAIL FAN

  • The product bis of the snail type.
  • It has a backward-curved, wide-bladed radial type impeller structure.
  • The product 380 V and suitable for operation with a frequency inverter.
  • It is suitable for outdoor use.
  • It has a low noise level.
  • The motor protection class is IP 55.

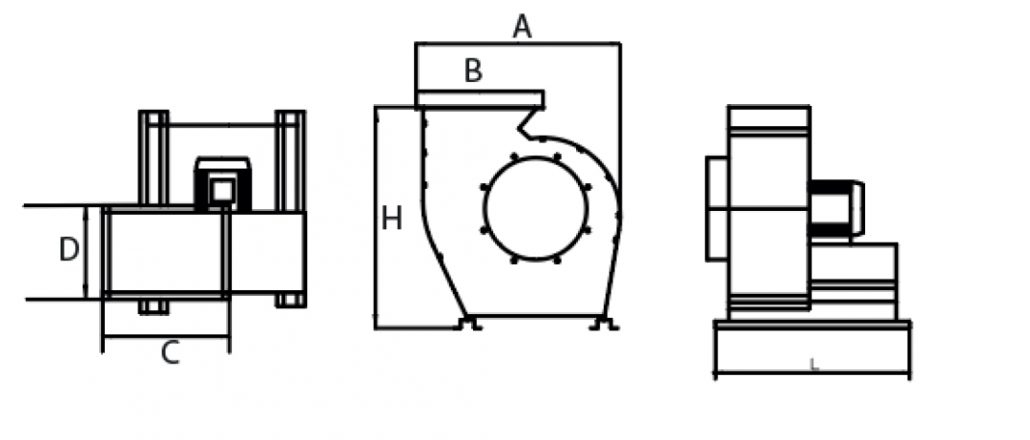

MODELSDIMENSIONS (mm)
ABCDLH
RKD-S 315-4T-0,25696187 270373767713
RKD-S 355-4T-0,37 771 208 307412846689
RKD-S 355-4T-0,55 771 208 307412846689
RKD-S 400-4T-0,75 850231 334457927827
RKD-S 450-4T-1,5940256 3705101023913
RKD-S 500-4T-2,2 1024 2814065591127913
RKD-S 560-4T-31127 3174496181231942
RKD-S 630-4T-5,5 1241 3435056831349998
RKD-S 710-4T-7,51382 38055075810521172
RKD-S 710-4T-11 143238055075810521172
RKD-S 800-4T-151516 41960683716271311
RKD-S 315-2T-1,1 696 187270373767713
RKD-S 355-2T-2,2 771 208301412846744
RKD-S 400-2T-4 850231334457927777
RKD-S 450-2T-5,59402563705101023863
RKD-S 500-2T-1110242814065591127849
MODELPRODUCT CODEAirflowPWRSoundCurrentRotationVOLTAGEWeight
(m³/h)(KW)(dBA)(AMP)(RPM)(V)(KG)
RKD-S 315-4T-0,25 4500145001,10962,3290038057
RKD-S 355-4T-0,37 4500269802,20974,5290038066
RKD-S 355-4T-0,55 4500398004,001007,9292038082
RKD-S 400-4T-0,7545004138007,509813,62920380126
RKD-S 450-4T-1,5 4500524500,37821,2139038054
RKD-S 500-4T-2,24500636500,37811,2139038058
RKD-S 560-4T-3 4500745500,55841,6138538067
RKD-S 630-4T-5,5 4500866000,75821,7144538093
RKD-S 710-4T-7,5 4500991801,50863,51449380109
RKD-S 710-4T-11 45010133003,00956,21446380129
RKD-S 800-4T-15 45011180005,509810,61467380155
RKD-S 315-2T-1.1 45012272007,5010215,21467380189
RKD-S 355-2T-2,2 450132815011,0010121,01470380189
RKD-S 400-2T-4 450143790015,0010230,91477380276
RKD-S 450-2T-5,5 450153935018,5010339,51474380316
RKD-S 500-2T-11 450165230022,0010541,61475380360
